Syncing data from S3 or GCS buckets

Intermediate
In this guide you'll learn how to automatically synchronize all the CSV files in an AWS S3 or Google Cloud Storage bucket to a Tinybird Data Source.

One time dump

Sometimes, you have a bunch of CSV files in a bucket that you want to append to one or more Tinybird Data Sources just once. This scenario can be easily scripted using bash, the AWS/GCS command line tools and the Tinybird Data Source API.

In the intro to ingesting data guide you learned how to programmatically ingest data to Tinybird to the ``events`` Data Source.

We have this set of events files in a bucket:

Let's see how we can ingest then to the same Data Source.

From an S3 bucket

You can use a bash script like the one given below:

  • ``TB_TOKEN`` as a Tinybird auth token with ``DATASOURCE:CREATE`` or ``DATASOURCE:APPEND`` scope. See the Token API for more information.
  • ``BUCKET`` as the S3 URI of the bucket containing the events CSV files.
  • ``DESTINATION_DATA_SOURCE`` as the name of the Data Source in Tinybird, in this case ``events``.

It'll use the ``aws`` cli to list the files in the bucket, extract the name of the CSV file, create a signed URL and append to the ``DESTINATION_DATA_SOURCE``.

To avoid hitting API rate limits it'll sleep 15 seconds between each request. This is the complete bash script:

This script requires having the AWS command line tool installed and configured, and the ``DESTINATION_DATA_SOURCE`` previously created in the Tinybird account.

From a Google Cloud Storage bucket

You can use a bash script like the one given below:

  • ``TB_TOKEN`` as a Tinybird auth token with ``DATASOURCE:CREATE`` or ``DATASOURCE:APPEND`` scope. See the Token API for more information.
  • ``BUCKET`` as the GCS URI of the bucket containing the events CSV files.
  • ``DESTINATION_DATA_SOURCE`` as the name of the Data Source in Tinybird, in this case ``events``.
  • ``GOOGLE_APPLICATION_CREDENTIALS`` as the local path of a Google Cloud service account JSON file.
  • ``REGION`` as the Google Cloud region name.

It'll use the ``gsutil`` cli to list the files in the bucket, extract the name of the CSV file, create a signed URL and append it to the ``DESTINATION_DATA_SOURCE``.

To avoid hitting API rate limits it'll sleep 15 seconds between each request. This is the complete bash script:

This script requires having the ``gsutil`` command line tool installed and configured, and the ``DESTINATION_DATA_SOURCE`` previously created in the Tinybird account.

Syncing CSV files automatically with cloud functions

While the previously described scenario consisted in a one time dump of CSV files in a bucket to Tinybird, a different and more interesting scenario consists of appending to a Data Source each time a new CSV file is dropped into a bucket.

That way you can have your ETL process that exports some data from your Data Warehouse (such as Snowflake or BigQuery) or any other origin and forget about how to synchronize those files to Tinybird.

This can be achieved by means of AWS lambda functions or Google cloud functions.

Syncing CSV files from S3 to Tinybird with Lambda functions

Imagine you have an S3 bucket named ``s3://automatic-ingestion-poc/`` and each time you put a CSV there you want to sync it automatically to an ``events`` Data Source previously created in Tinybird. This is how you do it:

  • Clone this GitHub repository
  • Install the AWS cli and run ``aws configure``. You need to provide the ``region`` as well since it is required by the script.
  • Now run ``cp .env_sample .env`` and set the ``TB_TOKEN`` and ``S3_BUCKET`` (in our case ``S3_BUCKET=automatic-ingestion-poc``)
  • Run the ``./run.sh`` script. It'll deploy a Lambda function with name ``TB_FUNCTION_NAME`` to your AWS account, which will listen for new files in the ``S3_BUCKET`` and automatically append them to a Tinybird Data Source described by the ``FILE_REGEXP`` environment variable.

It'll create a Lambda function in your AWS account:

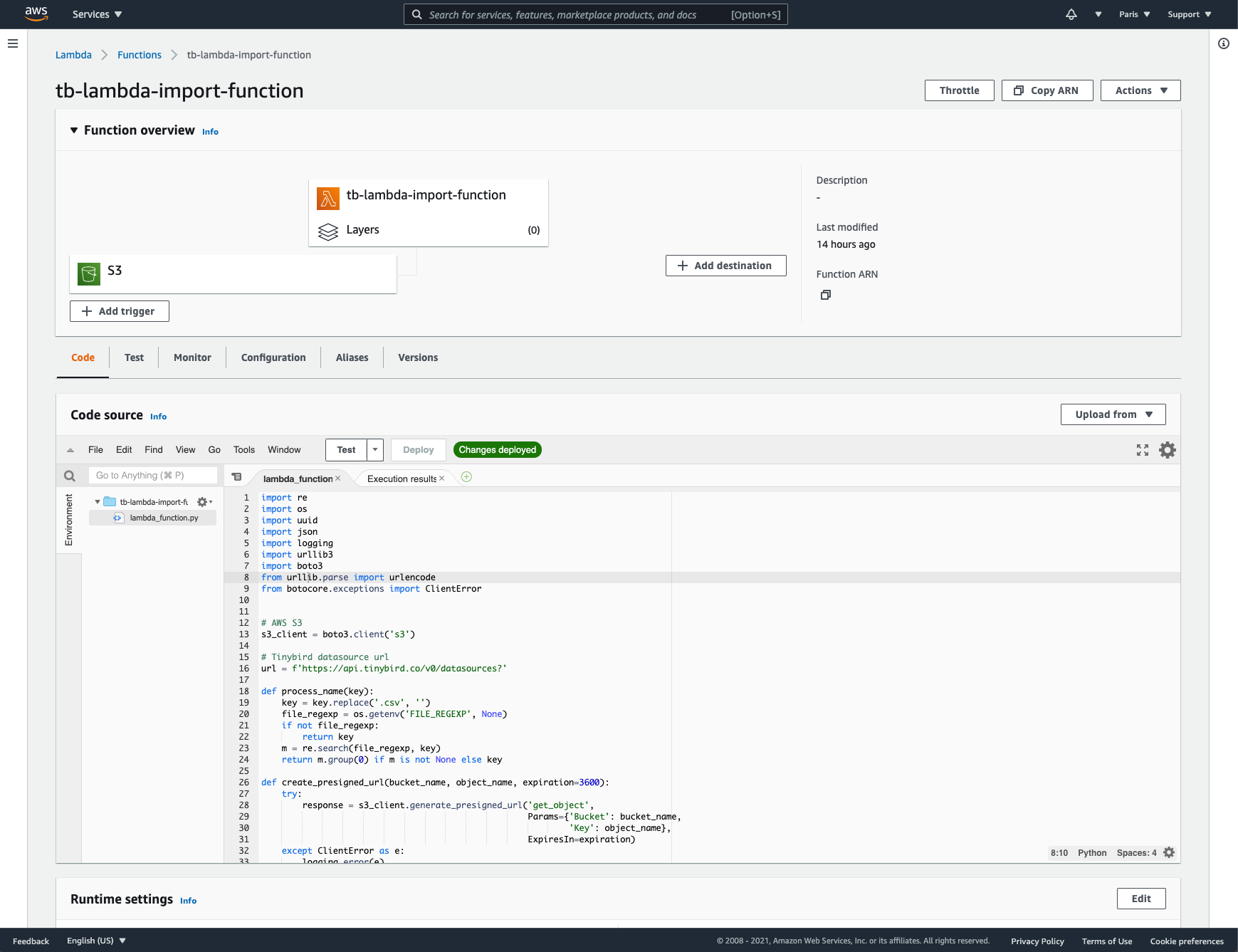

Lambda function to sync an S3 bucket to Tinybird

so that each time you drop a new CSV file it'll be automatically ingested in the destination Data Source. In this case the Lambda function is automatically configured to support this naming convention in the CSV files ``{DESTINATION_DATA_SOURCE}_**.csv``. For instance if you drop a file named ``events_0.csv`` it'll be appended to the ``events`` Data Source. You can modify this behaviour with the ``FILE_REGEXP`` environment variable or modifying the code of the Lambda function.

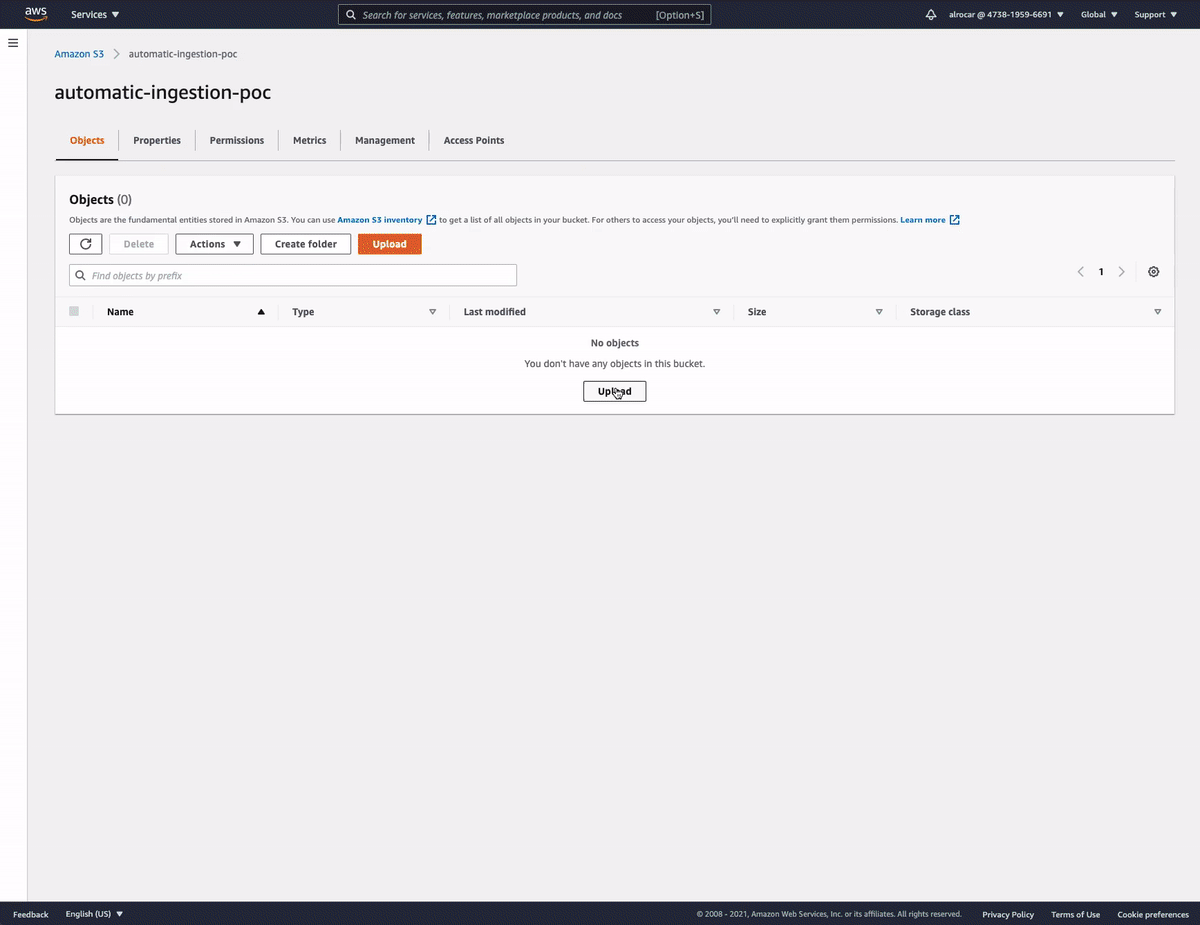

Drop files to an S3 bucket and check the datasources_ops_log

Syncing CSV files from GCS to Tinybird with cloud functions

Imagine you have a GCS bucket named ``gs://automatic-ingestion-poc/`` and each time you put a CSV there you want to sync it automatically to an ``events`` Data Source previously created in Tinybird.

This is how you do it:

  • Clone this GitHub repository
  • Install and configure the ``gcloud`` command line tool.
  • Now run ``cp .env.yaml.sample .env.yaml`` and set the ``TB_TOKEN`` variable
  • Run:

It'll deploy a Google cloud function with name ``TB_FUNCTION_NAME`` to your Google Cloud account, which will listen for new files in the ``BUCKET_NAME`` provided (in our case ``automatic-ingestion-poc``) and automatically append them to a Tinybird Data Source described by the ``FILE_REGEXP`` environment variable.

Cloud function to sync a GCS bucket to Tinybird

Now you can drop CSV files into the configured bucket:

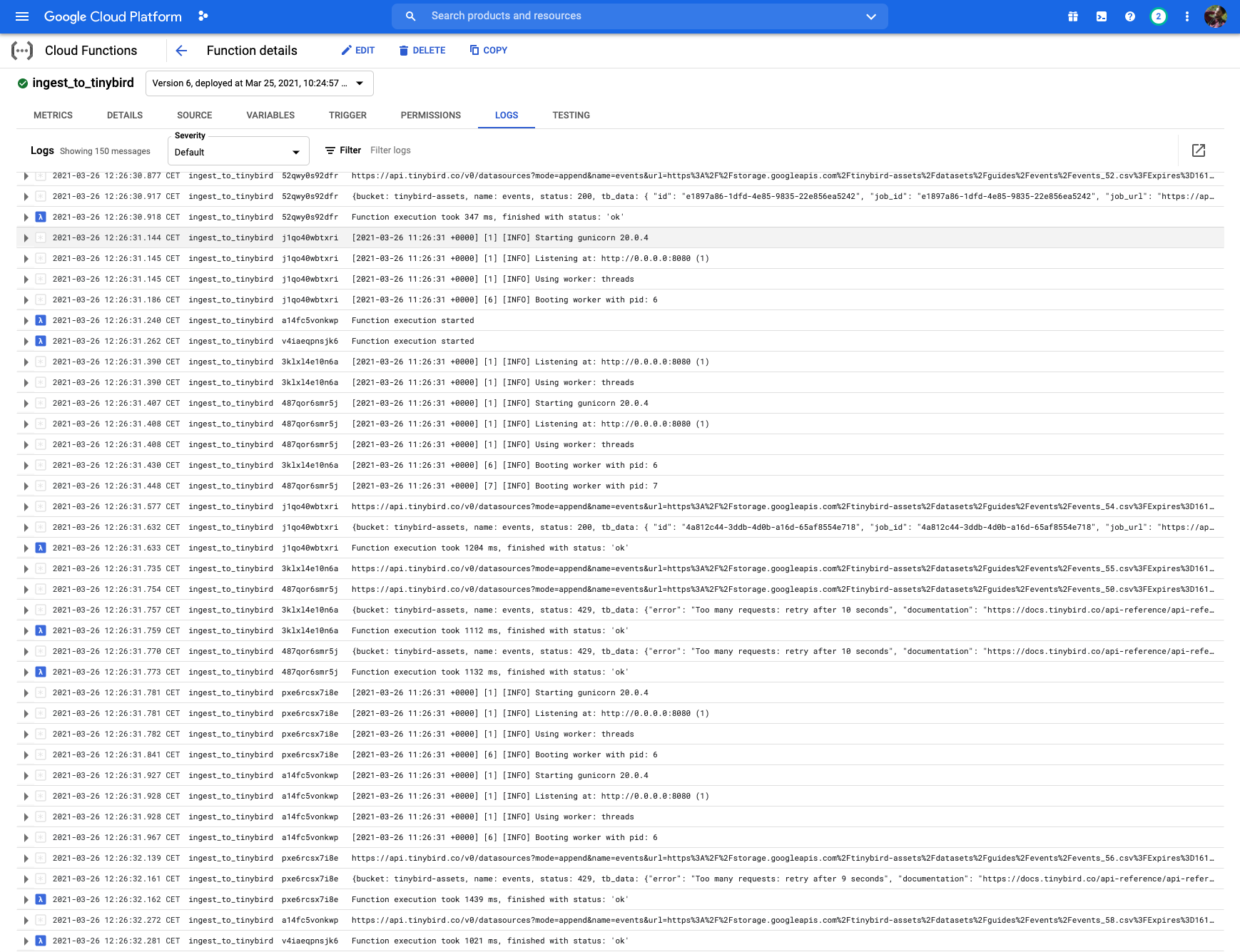

Drop files to a GCS bucket and check the datasources_ops_log

A nice pattern consists of naming the CSV files like this ``datasourcename_YYYYMMDDHHMMSS.csv`` so they'll be automatically appended to ``datasourcename`` in Tinybird. For instance, ``events_20210125000000.csv`` will be appended to the ``events`` Data Source.
