CI/CD with Tinybird Forward: Automating Real-Time Data Deployments

Creating CI/CD workflows is crucial for automating and streamlining the software development lifecycle. This means:

• Faster and more reliable releases
• Fewer manual errors
• Better team collaboration
• Consistent environments
• Easier rollbacks and improved scalability

In this post, we'll break down the CI/CD setup used to integrate the electricity visualization project into Tinybird Forward. We'll go through the current setup, highlight key steps, and point out what's new compared to Tinybird Classic.

Let's take the electricity data visualization project built with Tinybird Forward as our example. There's already a blog post explaining the code and the project's scope, so now we'll integrate that project into a CI/CD workflow to make things more professional.

What is Tinybird Forward?

Tinybird Forward is a major evolution of the Tinybird platform, designed with developers in mind, especially for building real-time data apps and AI-native workflows.

Key features include:

• Local-first development with tb local: Run Tinybird in a local container to build and test with instant feedback, no more 30-second builds.
• Data-as-code: Everything lives as plain text files in Git.
• Simplified CI/CD with single-command deploys, automatic schema migrations, and end-to-end tests.

CI/CD Workflow Structure

We've structured our workflow into three stages:

1. Local Testing: Develop and test changes locally with tb local.
2. Staging Deployment: When a pull request is merged into the staging branch, a deployment is created in the cloud and a new pull request is auto-generated to promote those changes to main.
3. Production Deployment: Once changes in staging are verified, the main PR is merged and the staging deployment is promoted to live.

This gives us a safe and automated process with clear checkpoints to prevent accidental mistakes from hitting production.

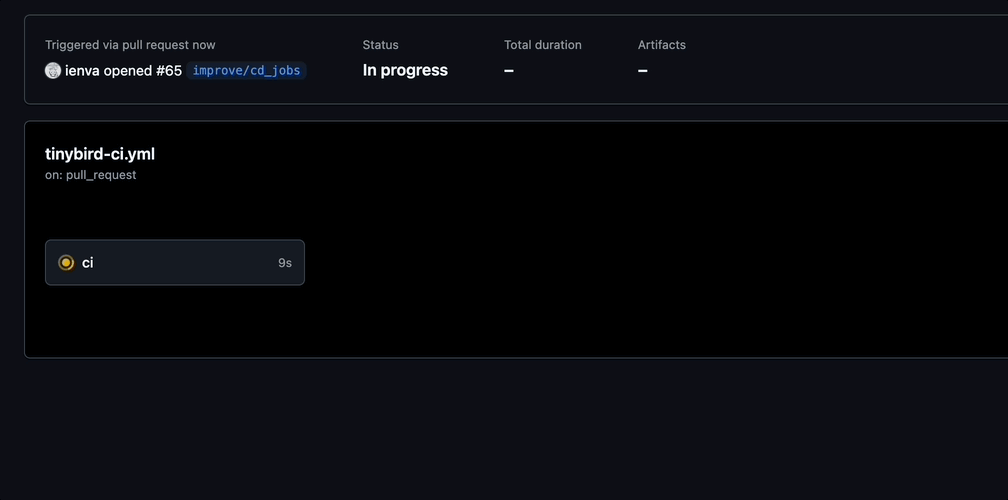

CI (Continuous Integration)

The CI pipeline runs on pull requests targeting main or staging. Here's what it does:

name: Tinybird - CI Workflow

on:
  workflow_dispatch:
  pull_request:
    branches: [main, staging]
    types: [opened, reopened, labeled, unlabeled, synchronize]

concurrency: ${{ github.workflow }}-${{ github.event.pull_request.number }}

env:
  TINYBIRD_HOST: ${{ secrets.TINYBIRD_HOST }}
  TINYBIRD_TOKEN: ${{ secrets.TINYBIRD_TOKEN }}

jobs:
  ci:
    runs-on: ubuntu-latest
    services:
      tinybird:
        image: tinybirdco/tinybird-local:latest
        ports:
          - 7181:7181
    steps:
      - uses: actions/checkout@v3
      - name: Install Tinybird CLI
        run: curl https://tinybird.co | sh
      - name: Build project
        run: tb build
      - name: Test Tinybird project
        run: tb test run
      - name: Run Python tests
        run: |
          pip install pytest pyyaml
          PYTHONPATH=ree_data_tracker/src pytest ree_data_tracker/tests
      - name: Deployment check
        run: tb --cloud --host ${{ env.TINYBIRD_HOST }} --token ${{ env.TINYBIRD_TOKEN }} deploy --check

So the steps of this workflow are,

1. Install Tinybird CLI
2. Build the project
3. Test the Python code in the ree_data_tracker
4. And run the checks on the Tinybird code to see if everything can be promoted to the cloud.

You might notice we were missing Tinybird tests at first. What happens when you change an endpoint or a data source? To fix this, we added this step:

- name: Run Tinybird test
  run: |
    cd tinybird
    tb test run

Simple and powerful.

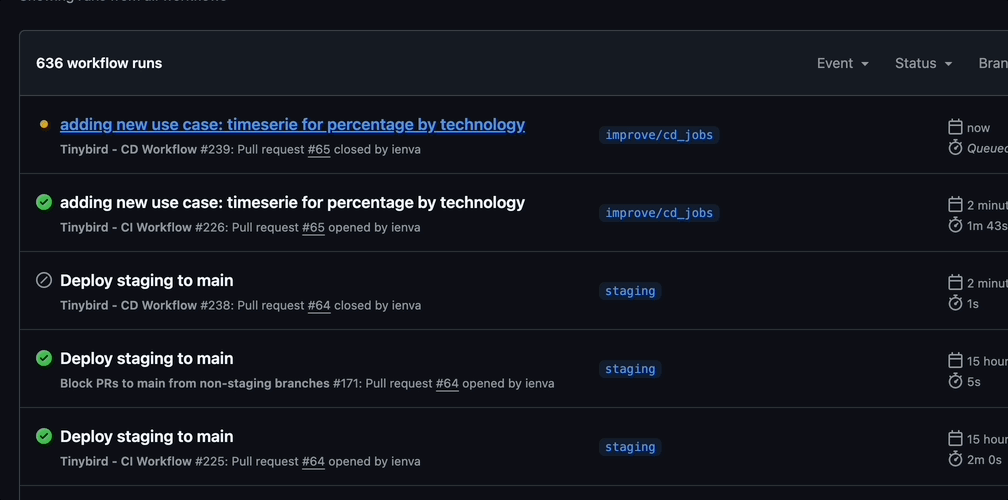

CD (Continuous Deployment)

Now let's break down the CD part. CD automatically promotes tested changes through staging to production.

deploy-staging

Runs when a PR is merged into the staging branch using the TINYBIRD_TOKEN of the staging workspace. It:

• Checks differences between main and staging
• Installs the Tinybird Forward CLI
• Creates a deployment on Tinybird Cloud
• Creates a PR to promote changes to main

This way, changes are deployed to a staging environment while the PR awaits merge.

deploy-production

Triggered when a PR is merged into main, using the TINYBIRD_TOKEN of the production workspace. It:

• Installs the Tinybird CLI
• Promotes the existing staging deployment to live

Bonus: A separate workflow ensures only PRs from staging can be merged into main.

Staging Dashboard Setup

Once a staging deployment is created, you'll probably want to test it visually. The dashboard uses a __tb__deployment parameter to target the correct resources in staging. The dashboard will be a copy of the production but pointing to the staging deployment.

To fetch the deployment ID:

tb --cloud deployment ls

output

| ID | Status | Created at |
\--------------------------------------
| 40 | Staging | 2025-06-17 13:42:28 |
| 39 | Live | 2025-06-16 13:38:57 |
\--------------------------------------

Adding the replace of the deployment ID in the cd of staging deployment,

- name: Set deployment ID in Staging dashboard JSON
  run: |
    echo "🔧 Getting Staging deployment ID from Tinybird..."
    DEPLOYMENT_ID=$(tb --cloud --host ${{ env.TINYBIRD_HOST }} --token ${{ env.TINYBIRD_TOKEN }} deployment ls | awk '/Staging/ { print $2 }')

    if [ -z "$DEPLOYMENT_ID" ]; then
      echo "⚠️ No active staging deployment found. Skipping JSON update."
      exit 0
    fi

    cd grafana/dashboards
    jq --arg id "$DEPLOYMENT_ID" '(.panels[].targets[].url_options.params[] | select(.key == "__tb__deployment").value) = $id' \
      stg_electric_analysis.json > tmp && mv tmp stg_electric_analysis.json

    git config --global user.name "GitHub Actions"
    git config --global user.email "actions@github.com"
    git add stg_electric_analysis.json
    git commit -m "Update staging dashboard with deployment ID $DEPLOYMENT_ID"
    git push origin staging

Now your staging dashboard will point to the right deployment

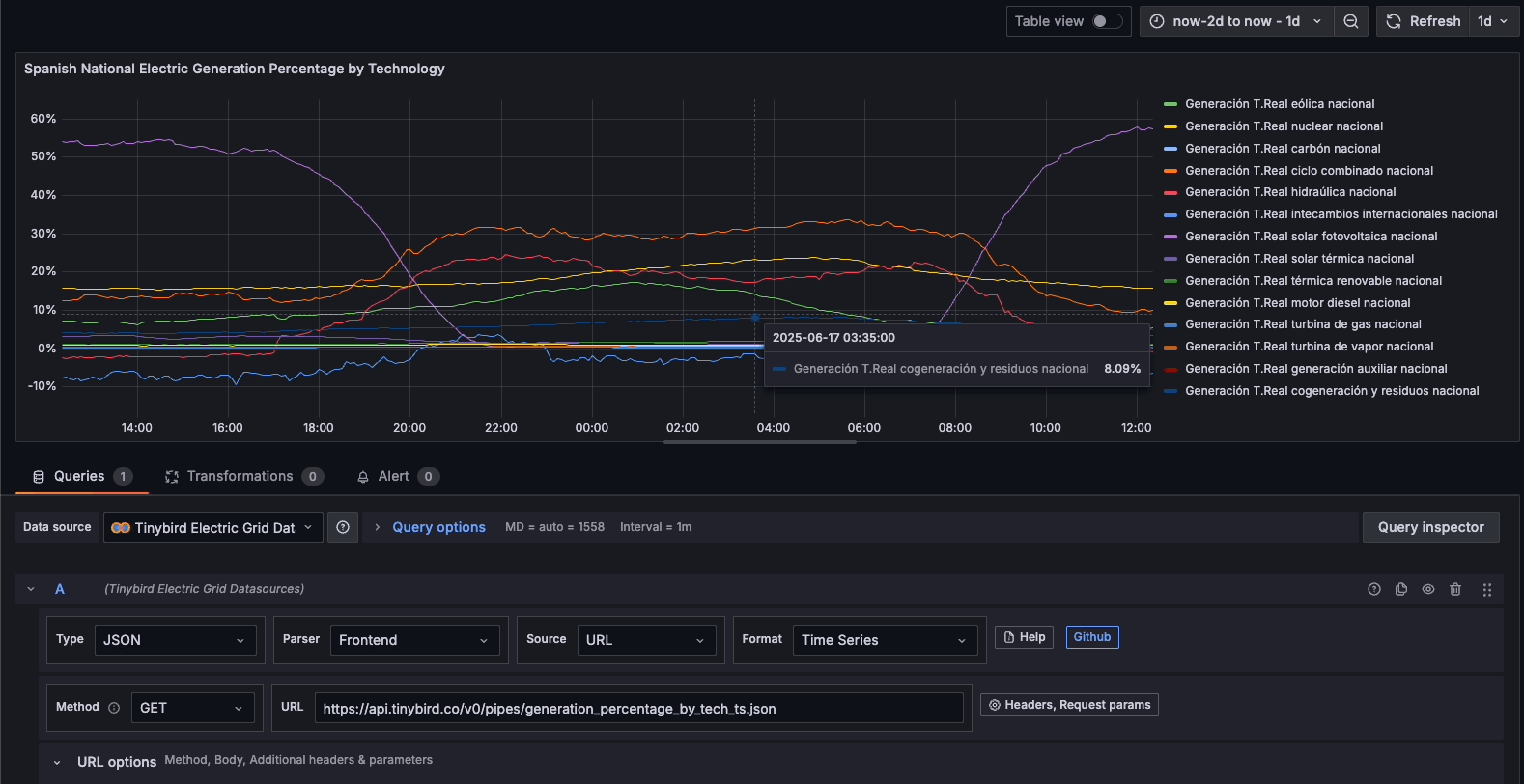

Example: Add a New Graph

Let's create a new graph to show the percentage of electricity generation by technology over time. The data is already in generation_mv, so we just need a new endpoint:

generation_percentage_by_tech_ts.pipe

NODE generation_by_tech_node
DESCRIPTION >
    Generation timeseries

SQL >
    %
    SELECT
        toTimezone(datetime, 'Europe/Madrid') datetime,
        metric_name,
        value
    FROM generation_mv FINAL
    WHERE 1=1
        {\% if defined(start_datetime) %}
        AND toTimezone(datetime, 'Europe/Madrid') >= {{DateTime(start_datetime)}}
        {\% end %}
        {\% if defined(end_datetime) %}
        AND toTimezone(datetime, 'Europe/Madrid') <= {{DateTime(end_datetime)}}
        {\% end %}

NODE genereation_total_by_time
DESCRIPTION >
    Total generation by time

SQL >
    SELECT
        datetime,
        sum(value) total_generation
    FROM generation_by_tech_node
    WHERE value >= 0
    GROUP BY datetime


NODE percentage_calculation
DESCRIPTION >
    Making the calculation of the percentages

SQL >
    SELECT
        gtec.datetime,
        gtec.metric_name,
        gtec.value/ls.total_generation value
    FROM generation_by_tech_node gtec
    LEFT JOIN genereation_total_by_time ls
    ON gtec.datetime = ls.datetime

TYPE ENDPOINT

Push to GitHub, open a PR to staging, and let the CI/CD do the rest.

Once the PR is merged:

git checkout staging
git pull

You'll see the new graph in the STG - Electric System dashboard. If all looks good, merge the auto-generated PR to main and the deployment goes live.

Bonus: Schema Iteration

Tinybird Forward makes schema changes a breeze.

With Tinybird Classic, changing a schema (e.g., column types or sorting keys) required manually recreating and repopulating the data source. With Forward, schema changes are handled for you. Just modify the .datasource file and push, it's all automatic.

Need to change a datatype? Just add a ForwardQuery to the .datasource file to cast to the new type.

Check the Forward schema evolution docs for examples.

Conclusion

Tinybird Forward is built for developers. It enforces data-as-code and prevents accidental changes via the UI. While the CI/CD approach differs slightly from Classic, the core idea remains: automate deployments safely.

Testing in staging before promoting to production gives you confidence and control. It eliminates surprises, avoids downtime, and makes dev work a lot more fun.

Further Reading

• Tinybird Forward Documentation
• CI/CD Integration Docs
